ART.EH1001
ART.EH1001

Technical features:

Suitable for domestic water services, heating and air-conditioning plants, compressed air systems.Minimum and maximum working temperature: －15oC, 120oC.
Available: in all sizes from 1/4" up to 4".
Materials:


Valve Body: CW617N
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.

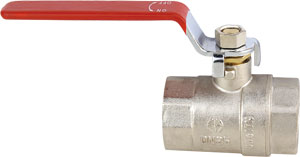

Forged brass ball valve,
red steel flat handle; FxF
ISO 7/1 thread
PN25

Size:1/4"~4"








　

Size(mm)

 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
DN 8 10 15 20 25 32 40 50 65 80 100
A 41.8 45 53 61 69 82 98 115 134 149 187.5
B 8 10 14 19 23 31 39.5 48 62 73 95
D 73 73 93 93 118 135 135 165 216.5 271 271
E 38 42 47 56 61.5 68 81 87.5 121.5 129.5 146.5
