ART.EH1023
ART.EH1023

Technical features:

Suitable for domestic water services,
heating and air-conditioning plants,
compressed air systems.

Minimum and maximum working
temperature: －15oC, 120oC.
Available: in all sizes from 1/2" up to 2".
Materials:


Valve Body: Brass
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.

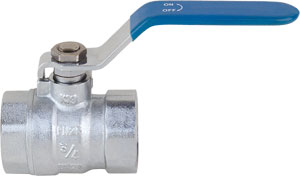

Forged brass ball valve,
steel flat handle; FxF
ISO228 thread or NPT
chrome-plated,
light model
PN25

Size:1/2"~2"









　

Size(mm)

 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
A 45 53.5 63.5 74.5 85 100
B 13.5 17.5 23 30 38 47
C 52 55 62.5 67 73 82
D 90 90 115 115 145 145
