ART.EH1029
ART.EH1029

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature:
－15oC, 120oC.
Available: in all sizes from 1/4" up to 2".
Materials:


Valve Body: Brass
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
O-Ring: NBR

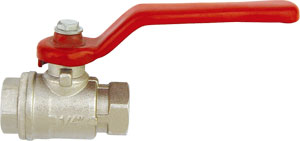

Forged brass ball valve,
red steel flat handle; FxF
ISO228 thread
1/4",3/8"--PN40
1/2"~2"----PN25

Size:1/4"~2"









　

Size(mm)

 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
A 43.9 43.9 48 53 65.8 78 91 113
B 10 10 14 18.6 23 30 38 50
C 80 80 80 113.5 113.5 117 117 135
D 37 37 39 53.5 57.5 57.5 62 79
E 24 24.3 29 36 43 56 68 85
