| ART.EH1030 |
|
| Technical features: |
|
Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.
Minimum and maximum working temperature:
－15oC, 120oC.
Available: in all sizes from 1/2" up to 1".
|
Materials:
|
|
Valve Body: Brass, chrome-plated
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.
|
|

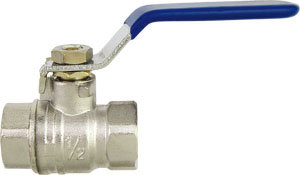

Forged brass ball valve,
steel flat handle; FxF
chrome-plated,
heavy model
ISO228 thread
PN30
Size:1/2"~1"
|
 |
|
Size(mm)
|
1/2" |
3/4" |
1" |
| A |
50 |
57.5 |
67 |
| B |
14 |
19 |
24 |
| C |
29 |
35 |
41 |
| D |
86 |
99 |
107.5 |
| E |
50.5 |
53 |
61.5 |
|
|
