ART.EH1047 |
|
Technical features: |
Nominal Pressure: 1.6MPa
Working Medium: Water, Non-corrosive liquid,
Saturated steam(≤0.6MPa)
Working Temperature: -10℃≤t≤110℃
Pipe Thread to ISO228
|
Materials:
|
Valve Body: Brass
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.
|
|

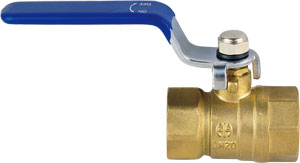

Forged brass ball valve,
reduced port, FxF
PN16
ISO228 thread
Size:1/2"~2"
|
|
Size(mm)
|
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
DN |
15 |
20 |
25 |
32 |
40 |
50 |
A |
48 |
54 |
66 |
78 |
84.5 |
103 |
B |
12.5 |
15 |
19 |
24.5 |
31 |
39 |
C |
47 |
48.5 |
55 |
63.5 |
68.5 |
77 |
D |
95 |
95 |
118 |
135 |
135 |
165 |
|
|
