| ART.EH1134 |
|
| Technical features: |
|
Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.
Minimum and maximum working temperature:
－15oC, 120oC.
Available: in all sizes from 1/2" up to 1".
|
Materials:
|
|
Valve Body: CW617N
Handle: Aluminium
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR
|
|

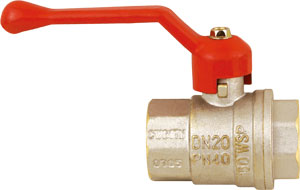

Forged brass ball valve,
aluminum lever handle, FxF
ISO228 thread
1/2"--PN64, 3/4"--PN40,
1"----PN40
Size:1/2"~1"
|
 |
|
Size(mm)
|
1/2" |
3/4" |
1" |
| A |
49.5 |
58 |
69 |
| B |
G1/2 |
G3/4 |
G1 |
| C |
15 |
20 |
25 |
| D |
84.5 |
84.5 |
115 |
| E |
35.5 |
39 |
51.5 |
|
|
