| ART.EH1250 |
|
| Technical features: |
|
Valve with lockshield
Use: hot water
Maximum working pressure: 10bar
Maximum working temperature: 110oC
Available: 3/8", 1/2"
|
Materials:
|
|
Valve Body: Brass
Nut: Brass
Seat: Brass
O-Ring: NBR or EPDM
|
|

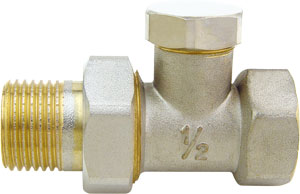

Forged brass straight
radiator valve with
lockshield, nickel plated
light model,
ISO228 thread
Size:3/8", 1/2"
|
 |
|
Size(mm)
|
3/8" |
1/2" |
| A |
65.5 |
65.5 |
| B |
10.7 |
10.7 |
| C |
29.5 |
32 |
| D |
27 |
27 |
|
|
