| ART.EH1184 |
|
| Technical features: |
|
Nominal Pressure: 1.6MPa
Working Medium: Water，
Saturated steam(≤0.6MPa)
Working Temperature: t≤120℃
Pipe Thread to ISO7/1
|
Materials:
|
|
Valve Body: Brass
Nut: Brass
Seat: Brass
O-Ring: NBR or EPDM
|
|

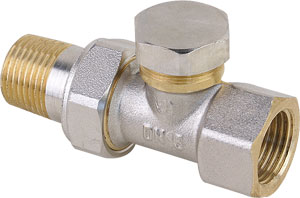

Forged brass straight radiator
valve with lockshield,
nickel plated, heavy model,
ISO7/1 thread
Size: 1/2"
|
 |
|
Size(mm)
|
1/2" |
| DN |
15 |
| L |
79 |
| H |
29 |
| D |
G1/2 |
| B |
13.5 |
| C |
R1/2 |
|
|
