| ART.EH1164 |
|
| Technical features: |
|
Valve with lockshield
Use: hot water
Maximum working pressure: 10bar
Maximum working temperature: 110oC
Available: 3/8", 1/2"
|
Materials:
|
|
Valve Body: Brass
Nut: Brass
Seat: Brass
O-Ring: NBR or EPDM
|
|

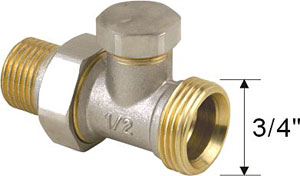

Straight EUROKONUS
thermostatic radiator valve
with lockshield for copper,
multilayer and PEX tube
Size: 3/8", 1/2"
|
 |
|
Size(mm)
|
3/8" |
1/2" |
| A |
63 |
63.2 |
| B |
11.1 |
11.1 |
| C |
S26 |
S28.8 |
| D |
27 |
28.1 |
|
|
