| ART.EH1243 |
|
| Technical features: |
|
Nominal Pressure: 1.6MPa
Working Medium: Water，
Non-corrosive liquid，Heating
Working Temperature: -20℃≤t≤120℃
Pipe Thread to ISO228
|
Materials:
|
|
Valve Body: Brass
Cap: Brass
Filter: Stainless steel
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: P.T.F.E.
|
|

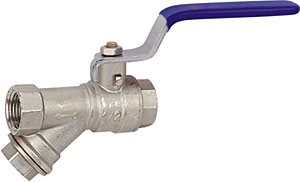

Forged brass y-strainer,
with ball valve,
brass finish
PN16, ISO228 thread
EH1242: Brass finish
EH1243: Nickel-plated
|
.jpg) |
|
Size(mm)
|
1/2" |
3/4" |
1" |
| DN |
15 |
20 |
25 |
| A |
78.5 |
88 |
102 |
| B |
12.5 |
15 |
19 |
| D |
95 |
95 |
118 |
| E |
44.8 |
48 |
50.6 |
|
|
