ART.EH1301

ART.EH1301

Technical features:

Suitable for domestic water services, heating and
air-conditioning plants, compressed air systems.

Minimum and maximum working temperature:
-10oC, 110oC.
Available: 1/2"x3/8", 1/2"x1/2", 3/4"x1/2"

Materials:


Valve Body: Brass
Handle: ABS
Ball: Brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR

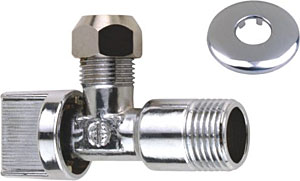

C.P brass angle valve,
with rossete

Size:1/2"x3/8", 1/2"x1/2"
3/4"x1/2"











Size(mm)

1/2"x3/8" 1/2"x1/2" 3/4"x1/2"
A 74.4 74.4 74.4
B 26 9.4 9.4
C 1/2" 1/2" 1/2"
D 3/8" 1/2" 3/4"
