ART.EH1284

ART.EH1284

Technical features:

Revolving drain in acetalic resin.

Max inlet working pressure 10bar

Max working temperature: 110oC

Materials:


Valve Body: Brass
Handle: Brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR

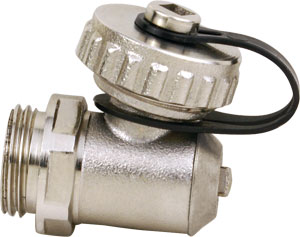

Drain valve
ISO228 threads

Size:1/2"











Size(mm)

1/2"
A 30.5
B 39.5
C G1/2
D 24
