| ART.EH1286 |
|
| Technical features: |
|
Revolving drain in acetalic resin.
Max inlet working pressure 10bar
Max working temperature: 110oC
|
Materials:
|
|
Valve Body: Brass
Handle: Metal
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR
|
|

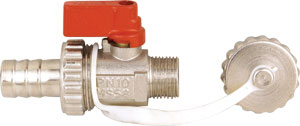

Forged brass drain ball
valve for oil and water,
nickel-plated
ISO228 thread
Size:3/8", 1/2", 3/4"
|
 |
|
Size(mm)
|
3/8" |
1/2" |
3/4" |
| A |
68.5 |
68.5 |
70 |
| B |
9.5 |
9.5 |
9.5 |
| C |
29 |
29 |
29 |
| D |
23.5 |
23.5 |
23.5 |
| E |
29.5 |
29.5 |
29.5 |
|
|
