ART.EH1288

ART.EH1288

Technical features:

Revolving drain in acetalic resin.

Max inlet working pressure 10bar

Max working temperature: 110oC

Materials:


Valve Body: Brass
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR

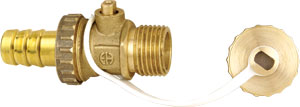

Forged brass drain
ball cock
ISO228 thread

Size:1/2"











Size(mm)

1/2"
A Φ15
B G1/2
C 45
D 68.5
E 20.7
F Φ9
