ART.EH1085
ART.EH1085


Technical features:

According to EN331 standard.
Minimum and maximum working temperature:
-10oC, 120oC.
Available: in all sizes from 1/4" up to 2".
Materials:


Valve Body: CW617N
Handle: Steel
Ball: Hard chrome-plated brass
Seal: P.T.F.E.
Stem: Brass
Stem-seal: Brass
O-Ring: NBR or FKM

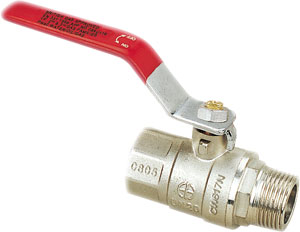

Forged brass gas ball valve;
red steel lever handle;
FxM
ISO7/1 thread,
EN331 standard
PN40~PN25(5MOP)

Size:1/4"~2"

　

Size(mm)

 1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
A 52 55 62 69.5 79 94.5 104.5 130
B 8 10 15 20 25 32 40 50
D 65.5 65.5 96 96 118 118 176 176
E 41 42 47.5 50 50 68 81 87.5
