| ART.EH2302 |
|
| Technical features: |
|
Suitable for distribution manifold with male
outlets, suitable for fittings for copper, PEX,
polybutylene or multilayer piping.
Maximum working temperature: 110oC.
|
Materials:
|
|
Brass
|
|

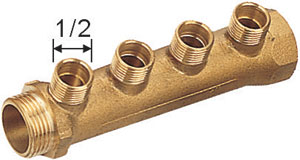

Manifolds with male outlets,
interaxis 36mm
Size:3/4"Gx2x16, 3/4"Gx3x16,
3/4"Gx4x16, 3/4"Gx5x16,
1"Gx2x16, 1"Gx3x16,
1"Gx4x16, 1"Gx5x16
|
 |
|
Size(mm)
|
3/4"Gx2 |
3/4"Gx3 |
3/4"Gx4 |
3/4"Gx5 |
1"Gx2 |
1"Gx3 |
1"Gx4 |
1"Gx5 |
| A |
85 |
121 |
157 |
193 |
85 |
121 |
157 |
193 |
| B |
36 |
36 |
36 |
36 |
36 |
36 |
36 |
36 |
| D |
3/4 |
3/4 |
3/4 |
3/4 |
1 |
1 |
1 |
1 |
|
|
