| ART.EH2305 |
|
| Technical features: |
|
Suitable for distribution manifold with shut-off valves to the male outlets, suitable for fittings
for copper, PEX, polybutylene or multilayer piping.
Maximum working temperature: 110oC.
|
Materials:
|
|
Valve Body: Brass
Handle: ABS
Seal: NBR
Stem: Brass
Stem-seal: Brass
O-Ring: NBR
|
|

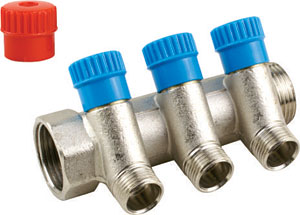

Manifolds with male outlets
with shut-off valve,
interaxis 36mm
Size:3/4"Gx2x16, 3/4"Gx3x16,
3/4"Gx4x16, 1"Gx2x16,
1"Gx3x16, 1"Gx4x16
|
 |
|
Size(mm)
|
3/4"Gx2 |
3/4"Gx3 |
3/4"Gx4 |
1"Gx2 |
1"Gx3 |
1"Gx4 |
| A |
85 |
121 |
157 |
85 |
121 |
157 |
| B |
36 |
36 |
36 |
36 |
36 |
36 |
| D |
3/4 |
3/4 |
3/4 |
1 |
1 |
1 |
|
|
